BC-YC Pull-off Valve for Oil Station

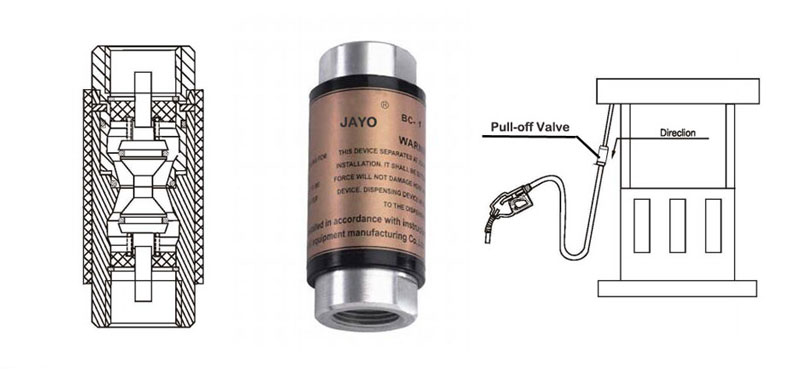

JAYO BC-YC pull-off valves are designed to be installed on fuel dispensing hoses. When subjected to a certain pressure, the pull-off valve will separate. Two valves can automatically seat, shut off fuel outflow, limit fuel leakage, and protect fueling equipment. Under the normal operation, JAYO BC-YC 3/4’’ valves should be installed on fueling hose with stretched length not less than 9’’, while JAYO BC-YC 1’’ valve should be installed on rubber hose with length not less than 12’’.
Features of BC-YC Valve
- Pull force: JAYO BC-YC 3/4’’will break away under the force of 300lbs±5% while BC-YC 1’’ will break away under the force of 360lbs±5%.
- Operation confirm: After separation, replace the break valve with a new one. Do not re-install it. This product is for one-time break off use.
- Unique dual valve design to realize two-way cut off.
- Flow rate: BC-YC 3/4’’- 0-60L/min; BC-YC 1’’ – 0-120L/min
- Working pressure: 0.18㎫
- Low pressure: the integral cut-off valve design can reduce the pressure to a minimum, accelerating the flow rate.
- 100% factory inspection.
Technical Parameters of BC-YC Pull-off Valve
| Model | Size | Package | Material |
|---|---|---|---|
| BC-YC801 | NPT3/4’’ X NPT3/4’’ | Net weight: 0.23kg/pc; Gross weight: 0.26kg/pc | Body: aluminum Main seals: Viton Main spring: stainless steel Guide and poppet: POM Protective sleeve: PVC |
| BC-YC802 | BSP3/4’’ X BSP3/4’’ | Size: 26.8*48*26cm3 case of 100pcs | |
| BC-YC803 | NPT1’’ X NPT1’’ | Net weight: 0.38kg/pc Gross weight: 0.44kg/pc |
|
| BC-YC804 | BSP1’’ X BSP1’’ | Size: 29*29*30cm3 case of 50pcs |
