FMC Series PD Rotary Vane Flow Meter

This is a kind of positive displacement flow meters (short for PD flowmeter) that can be used to continuously measure the volume flow of liquid flowing through a pipeline. It belongs to the highest precision class among flow meters classification. PD rotary vane flowmeter is an instrument that directly accumulates flow according to the volume of the discharged fluid.

Advantages of PD Rotary Vane Flowmeter

◈This series PD rotary vane flowmeters are single chamber, angle-type, rotary vane and positive displacement flowmeters.
◈It has high measurement accuracy and wide application range, and is suitable for measuring various fuel oil products from gasoline to kerosene.
◈With the compact structure and various designs, this flow meter is suitable for various installation forms.
◈With low pressure loss, this flow meter is well suited for gravity unloading.
◈The advantages of long service life, low wear bearing and cam structure can make the flowmeter able to run for a long time with high accuracy.

Applications

FMC series PD rotary vane flowmeter can be used in mixing, batch processing, sub-packaging, inventory control and airtight transportation of various oil products, solvents, chemicals, paints, fertilizers, etc.

Technical Parameters

Model	FMC-50	FMC-80	FMC-100
Size	50mm/2”	80mm/3”	100mm/4”
Flow Rate Range	38~380L/min	75~750L/min	150~1500L/min
Max Working Pressure	10Bar/150PSI
Accuracy	±0.2%
Repeatability	≤0.07%
Dimension	593457cm	704058cm	834665cm
Net weight	42kg	56kg	80kg
Gross Weight	57kg	70kg	96kg
Package	1pc/wooden case

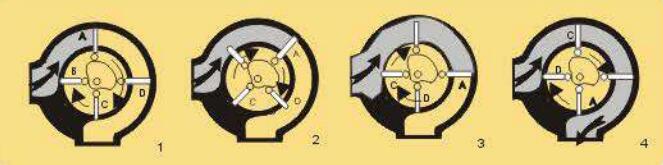

Construction

Our company Jayo Petro has been engaged in the supply of gas station equipment and parts for almost 40 years. We provide the cost-effective equipment and parts for gas stations, including various positive displacement flow meters. So if you have any other requirements for flow meters, please feel free to contact us via email info@jayopetro.com or leave message to us. We will have professional customer service at your service!
