Rubber Hose for The Distribution of LPGs

JAYO Petro provides premium high pressure single fiber braided rubber LPG hose and double fiber braided rubber LPG hose for the distrubition of LPGs to meet customers’ different requirements.

Features

◈Standand:This kind of rubber hose can be made in accordance with ISO11759 and GB20689

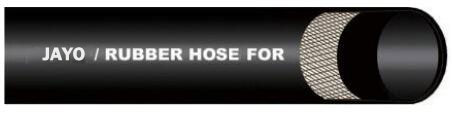

◈Construction:This kind of rubber hose consists of oil resistant rubber tube, one layers of steel wire braid rein forcement and weathering resistance synthetic rubber cover,at same time,out cover is punctured.
◈Application:This kind of rubber hose is used for delivery of measured liquefied petroleum gas(LPSs) from distribution equipment to motor vehicles.
◈Working temperature:-40⁰F~140⁰F(-40℃～60℃) Hose
◈Colour: according to users’ requirements.

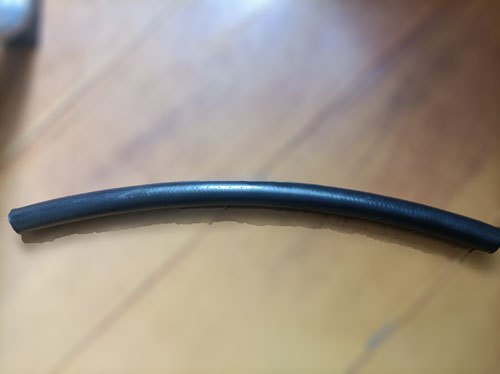

16mm LPG hose

Technical Requirement:
◈conveying medium: LPG(liquefied petroleum gas)
◈Working temperature: -40℃ ~ + 60℃
◈Max. working pressure: 2㎫
◈Min burst pressure: 10㎫
◈Rubber cover with hole

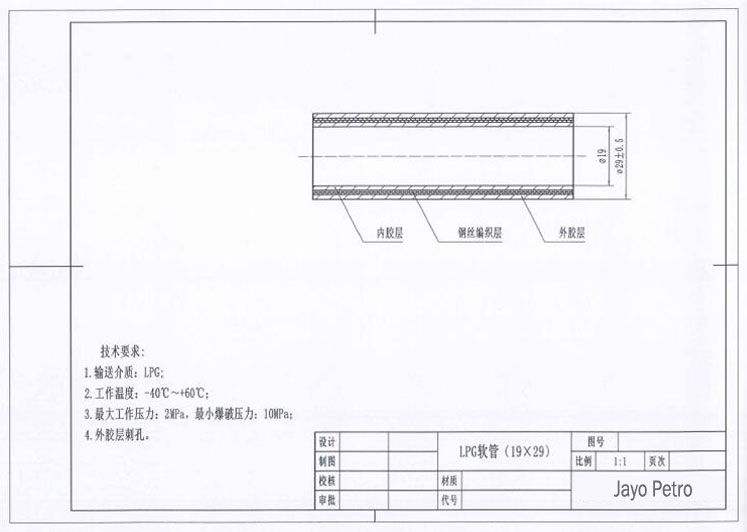

19mm LPG hose

Technical Requirement:
◈conveying medium: LPG(liquefied petroleum gas)
◈Working temperature: -40℃ ~ + 60℃
◈Max. working pressure: 2㎫
◈Min burst pressure: 10㎫
◈Rubber cover with hole
