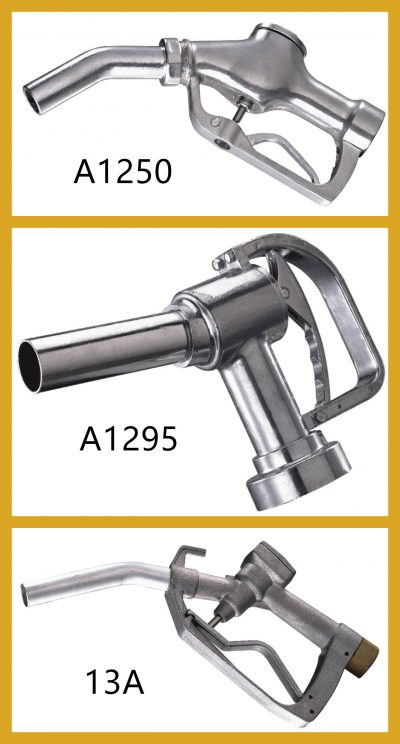

Manual Fueling Nozzle

High flow capacity manual fueling nozzles are suitable for high flow and large-scale refueling service. Besides, JAYO Petro also provides other manual fueling nozzles suitable for multipurpose refueling (gravity or low pressure), so as to meet various fueling requirements.

Features of Manual Fueling Nozzle

For 12A series & 13A series

◈Aluminum Frame – Lightweight and easy to handle.
◈Composite handle – The design of two pivot levers makes the refueling gun open easily and slowly at first, and then quickly and fully open, making it easy to refuel.
◈Rotary 360 degree joint – to prevent the hose from tangling.
◈Replaceable hidden normally open holding rack – easy to control the flow rate.
◈100% factory inspection

For A1295 series & A1250 series

◈Aluminum Frame – Lightweight and easy to handle.
◈Replaceable normally open holding rack – only one hand can control the normally open holding device, which can easily control the flow rate.
◈Always pay attention when using the oil gun.
◈Replaceable composite stock – fast, low cost, please use JAYO accessories when replacing.
◈Easy-to-replace joints-connecting joints with different threads and diameters.
◈100% factory inspection.

Technical Paramater of Manual Fueling Nozzle

Model	Material	Inlet Size	Outlet Diameter	Flow Rate	Working Pressure
A1295 series	Body: Cast aluminum Seals: Buna-N, Viton Main stem: Brass Spout: Aluminum	NPT1½” / NPT2” / BSPT1½”/BSPT2” / BSPP1½”/BSPP2”		0-290 L/m	0.18㎫
A1250 series	Body: Cast aluminum Seals: Buna-N, Viton Main stem : Stainless steel Spout: Aluminum	BSPP1½” / NPT1½”		0-260 L/m	0.18㎫
12Aseries	Body: Cast aluminum Seals: Buna-N, Main stem : Stainless steel Spout: Aluminum	NPT1” /NPT 3/4” / BSPP1” / BSPP3/4”	13/16” / 15/16”	0-45 L/m(13/16”) / 0-60 L/m(15/16”)	0.18㎫
13Aseries	Body: Cast aluminum Seals: Buna-N, Main stem: Stainless steel Spout: Aluminum	NPT1” /NPT 3/4” / BSPT1” / BSPP3/4”	13/16” / 1”	0-45 L/m(13/16”) / 0-70 L/m (1”)	0.18㎫
